Intelligent Population Counting Radar Sensor PSH1-WT
Open A New Era of Intelligent Perception
Are you still worried about inaccurate indoor population statistics, difficult-to-detect safety risks, and a lack of knowledge about energy consumption management? Homerda’s intelligent population statistics radar sensor PSH1-WT solves the problem in one stop!
Precise Perception, Real-time Control
Equipped with advanced radar technology, it can accurately detect the presence of people and count the number of people in the room in real time.
Whether it is a large commercial place or a warm home environment, it can quickly and accurately count people, so that you can know the flow of people at your fingertips.
Core Advantages, Show Excellence
Security Category
- Indoor overcapacity alarm: once the number of people in the room exceeds the preset value, the alarm will be triggered immediately to effectively prevent safety accidents caused by overcapacity and protect the safety of the place.
- Voice interaction alarm: Support voice interaction alarm function, clear transmission of alarm information in abnormal situations, and timely reminder to relevant personnel.
- Voice help: built-in voice help function, in case of emergency, you can help with one button, convenient and quick.
Behavior Monitoring
- Trajectory detection: accurately track the movement trajectory of people, analyze the action path and rules, and provide powerful data support for place management.
- Entry and exit records: detailed records of personnel entry and exit time, easy to trace and query, improve management efficiency.
Privacy and convenience
- Privacy protection: while accurately detecting, fully respect personal privacy and ensure user information security.
- Network push: It supports network functions, and the detection data is pushed to mobile phones and other terminal devices in real time, so that you can control remotely anytime and anywhere.
Application
Feature
Specification
SKU
Product Size (nm)
Install
Application
Feature
Multiple Applications, Smart Life
Hotel Scene
Deeply integrated with the hotel&s Saas management system, it can compare the number of guests checked in with the registered numbers in real time. It promptly alerts for prolonged stays by multiple people to prevent dangerous incidents.
It also accurately senses the presence of individuals and intelligently controls high-power electrical switches, achieving energy savings and reducing consumption, thereby enhancing the operational efficiency and intelligence level of the hotel.
home-based care for the aged
It solves the privacy problem in home health care perfectly and records the time of family members entering and leaving in real time. Through the supporting App, you can query the family dynamics with one click and know the situation of the elderly at home at any time, so that the care is more intimate and more secure.
Smart Home
It is seamlessly connected with the smart home linkage system, which divides and locates areas according to the trajectory of people and intelligently links lighting and other household equipment. The light turns on when people come and off when they leave, creating a convenient, comfortable and intelligent living environment.
Flexible customization, no worries
Supports the setting of customized parameters. According to the actual situation such as the size of the area, the distribution of doors and obstacles, etc., the reporting time of people, monitoring range and other parameters can be flexibly adjusted to perfectly adapt to all kinds of complex scenarios.
Specification

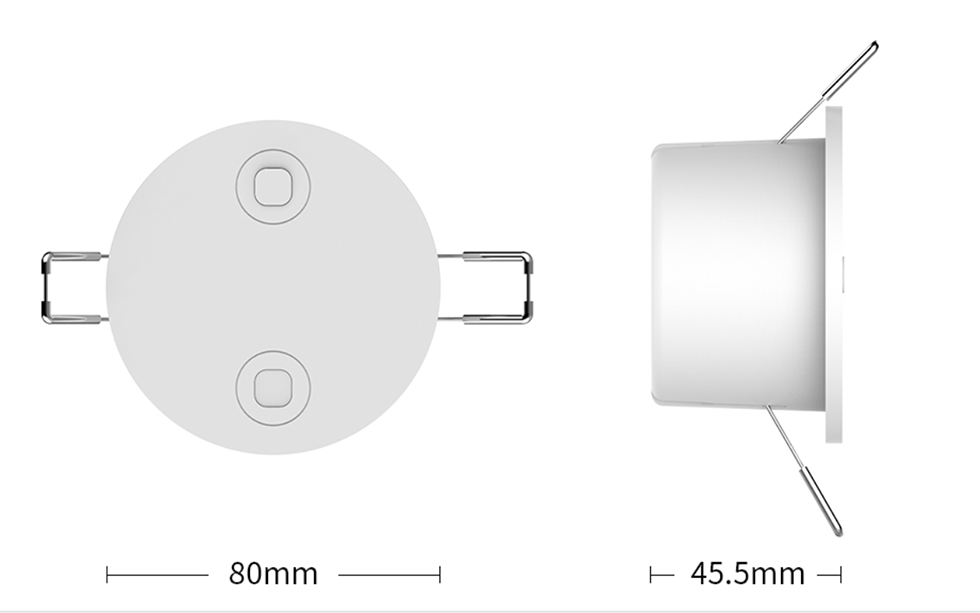

- Outer dimension: product diameter 80mm, thickness 45.5mm, small and exquisite, not taking up space.
- Installation method: direct top installation, convenient and quick. It is recommended to reserve a diameter of 66-68mm at the top during decoration, standard hole, and installation height of 2.2-2.4m.
- Detection range: the radius can reach 2.5m, the horizontal detection Angle is 100°, the pitch Angle is 80°, the coverage is wide.
- Power supply and networking: 5V/3A power USB input, stable power supply; support Wi-Fi networking, efficient and stable data transmission.
- Working environment: working temperature-10°C to + 60°C, working humidity 20% -85% (no condensation), adapt to a variety of environments.
Intelligent population counting radar sensor PSH1-WT, empower life with technology and protect safety with intelligence. Choose to add one perception and open a new chapter of intelligent life!
SKU
PSH1-WT
Product Size (nm)
88*45.5*45.5
Install
- According to the room layout, select the installation position with effective detection range to ensure that the room can effectively cover the embedded size of the product is 65mm. It is recommended to open a standard hole with a diameter of 66~68mm above the decoration ceiling.
- Draw the wire out from the hole, strip the wire and connect it with the product wire. It is recommended to use the inner long power supply for use, and the two wires have no positive or negative polarity.

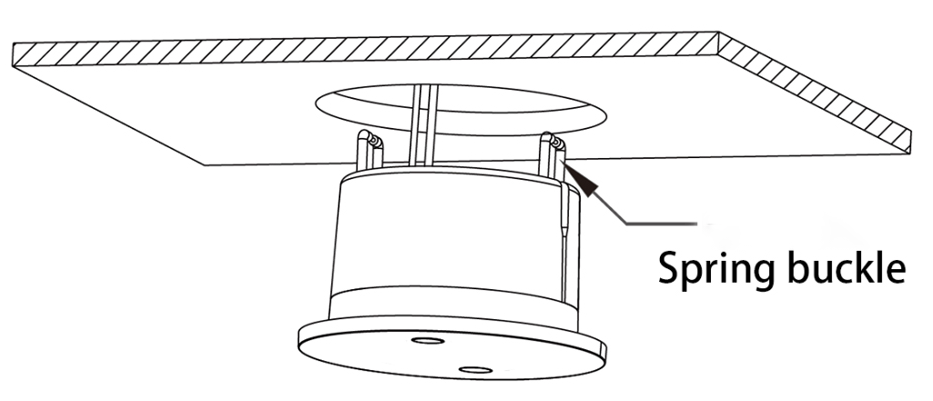

Fix the spring clip according to the diagram
Help Center
Have a query? Please check this question and answers
Adopts 60GHz millimeter wave radar + AI algorithm dual verification mechanism:
- When an abnormal posture is detected for the first time, the built-in speaker voice asks the user “Did you fall?”, and the APP alarm is triggered only after the user confirms “Yes”;
- If the user does not respond or remains still for a long time (such as coma), the sensor will automatically push alarms to the family APP continuously and send text messages to emergency contacts simultaneously.
Based on the Doppler effect of 60GHz millimeter-wave radar, it detects human micro-movements (such as chest rise and fall during breathing, body movements caused by heartbeat) by transmitting and receiving radar waves.
There is no need to wear equipment or contact the skin. The monitoring distance can reach 2.5 meters (sleep state) and 1.5 meters (breathing/heartbeat accuracy monitoring).
Yes. Through dynamic/static presence detection algorithms, the difference between characteristic human movements (such as walking and waving) and pet activities can be accurately identified to avoid false alarms caused by pet activities.
The detection accuracy reaches the breathing level (it can sense human breathing in a static state).
By monitoring data such as the duration of falling asleep, total sleep time, number of times getting out of bed, breathing rate, heart rate variability (HRV), and combining it with AI algorithms to divide the stages of wakefulness, light sleep, and deep sleep, a sleep score report is generated to intuitively display key indicators such as the proportion of deep sleep and sleep efficiency.
No.
The transmission power of HOMERDA products is lower than the international safety standards (such as the FCC’s 60GHz radar maximum power density ≤1mW/cm²), and the radiation intensity is much lower than a mobile phone call.
It is non-ionizing radiation and is harmless to the human body if used for a long time.
Data is transmitted to the cloud via the AES-128 encryption protocol and stored on Amazon cloud servers/and other compliant servers;
All devices have no video cameras and only transmit abstract vital sign data (such as respiratory rate, fall alarms), without involving images or privacy images, eliminating the risk of leakage from the source.
Yes. Users can add multiple family members’ accounts through the APP and authorize remote viewing of real-time health data, sleep reports and alarm records, which is suitable for remote monitoring of children or multi-role collaboration in nursing homes.
