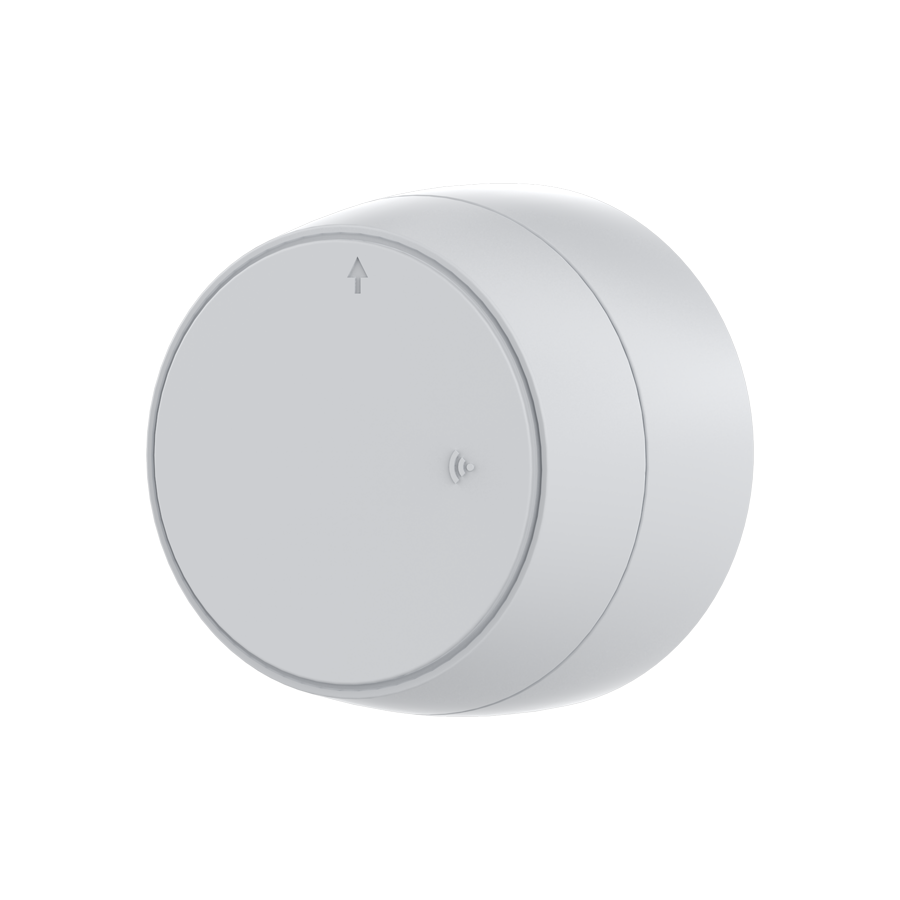

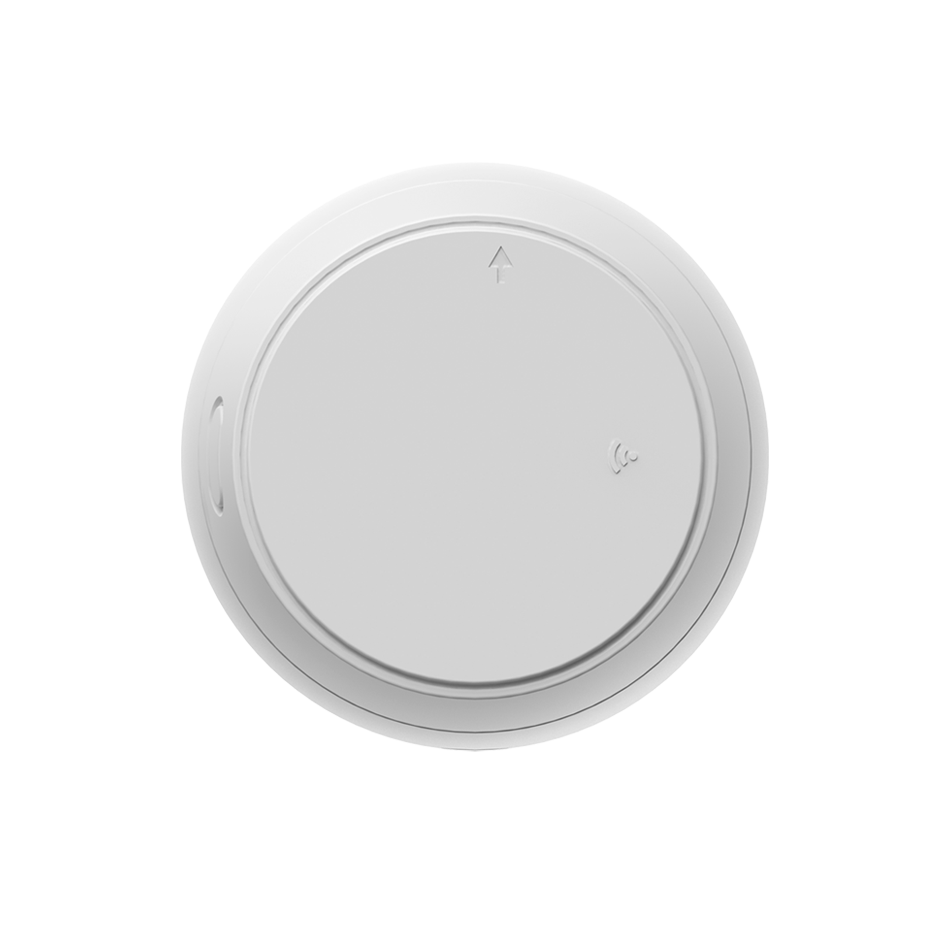

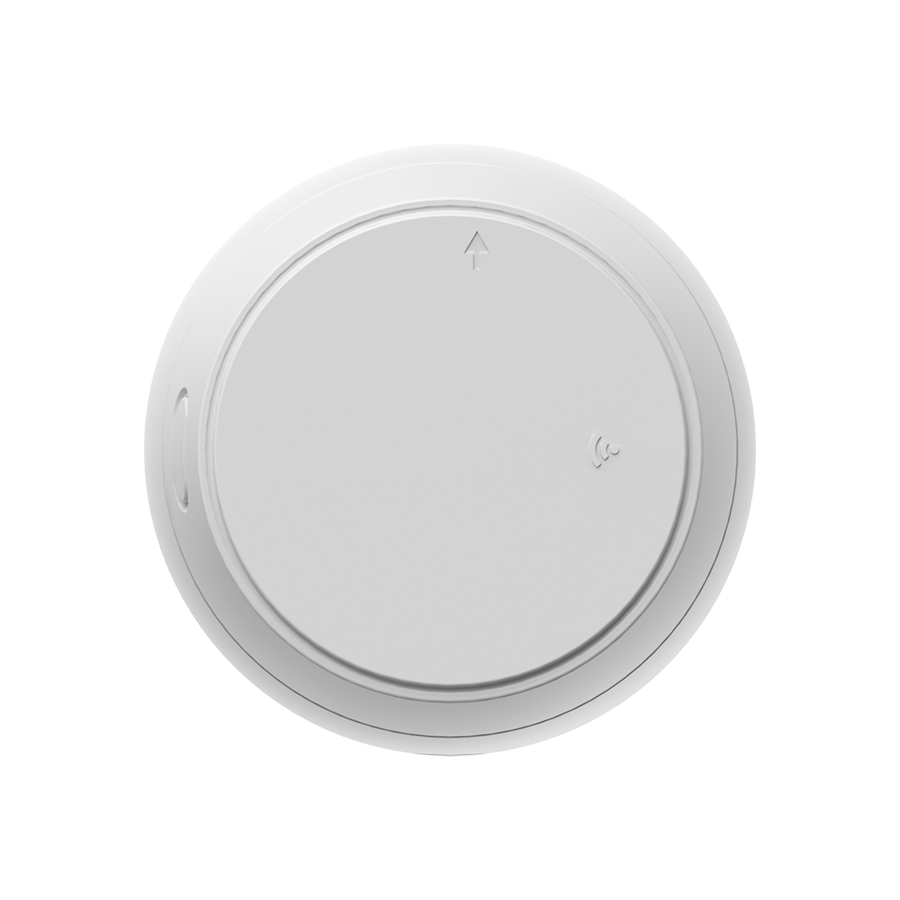

Homerda Sleep and Breathing Monitoring Sensor BD60S1-W
Are you concerned about your own or your family’s sleep health? Do you want a convenient way to keep track of your sleep status at all times? Homerda Respiratory sleep monitoring sensor BD60S1-W protects your sleep health.
There are more than 1 billion people in China who snore, and more than 300 million people experience apnea during sleep, of which 90 percent are undetected.
There are about 700 million empty-nesters living alone, and abnormal conditions occur at night, which are not easy to detect by their families.
Application
Feature
Specification
SKU
Product Size (nm)
Install
Application
Feature
Precise Sign Monitoring:
- Heart rate monitoring: real-time tracking of heart beat frequency, no abnormal fluctuations, to provide reliable data for heart health.
- Respiratory monitoring: sensitive capture of respiratory rhythm, accurate analysis of respiratory state, timely detection of respiratory abnormalities.
- Physical activity monitoring: detailed recording of physical activities during sleep, such as turning over and limb movements during sleep, to help analyze sleep quality.

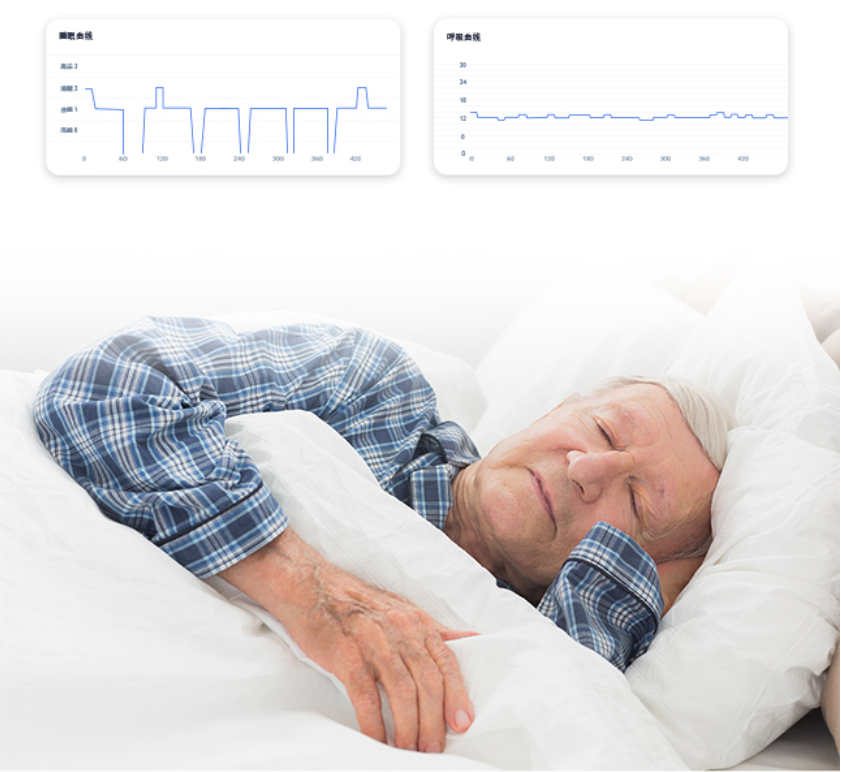

Smart sleep analysis Analyze
sleep data such as sleep duration, sleep duration, and number of times you get out of bed to generate a daily sleep report that gives you a clear picture of your sleep status.
Whether you have too much light sleep or too little deep sleep, it will be clearly presented.
Exceptional warning, peace of mind
- Nighttime risk warning: Always be alert to nighttime sleep risks, such as apnea and other potential dangerous situations, and issue early warnings to add multiple insurance for health.
- Early warning of long time away from bed: Real-time monitoring of in-bed and off-bed status through the App. If the elderly or children are away from bed for a long time, timely notification will be given to prevent accidents.
Remote care, family ties continue
Even if you are thousands of miles away from your family, you can check the health data of your family in real time through the mobile App, understand the key indicators such as heart rate and breathing rate, and know whether there is any abnormal situation, so that the care is always online.
Product advantages, show the thoughtful design
24-hour non-wearable and insensitive monitoring
Without wearing any equipment, the sensor is fixed above the head of the bed, free from light and temperature, no invasion of privacy, no camera installation, can fully monitor sleep data, comfortable and secure.
Customized services and wide application
Customization: Supports enterprise customers to customize, and can set ecological platform monitoring plans for dual-cloud applications or hosting methods, receive and process alarm information in time, and provide intimate care.
Application scenarios: It is widely used in nursing homes, kindergartens and other places to protect the safety of the old and young, effectively solve the problems of elderly life, and provide security for the healthy life of special groups.
Easy operation and stable connection
Easy to use on the Internet
According to the instructions of the App, complete the networking configuration of “millimeter wave radar equipment”, add the device and bind it. After successful installation, you can use it. With a few simple steps, you can easily start the sleep monitoring journey.
Stable connection is guaranteed
As a graffiti ecological product, it supports WiFi, Bluetooth and other connection modes to ensure stable and timely data transmission.
Specification
- Respiratory frequency and heart rate detection: real-time mode outputs the user’s respiratory frequency and heart rate number occupy;
- Environmental personnel detection: manned/unmanned;
- Action state detection: active/still/no state;
- Abnormal alarm: abnormal struggle alarm and long time off bed alarm;
- Sleep report analysis: daily/weekly/monthly sleep report output, including sleep quality Quantity score, sleep duration, proportion of deep sleep and light sleep duration, body movement parameters;
SKU
BD60S1-WT

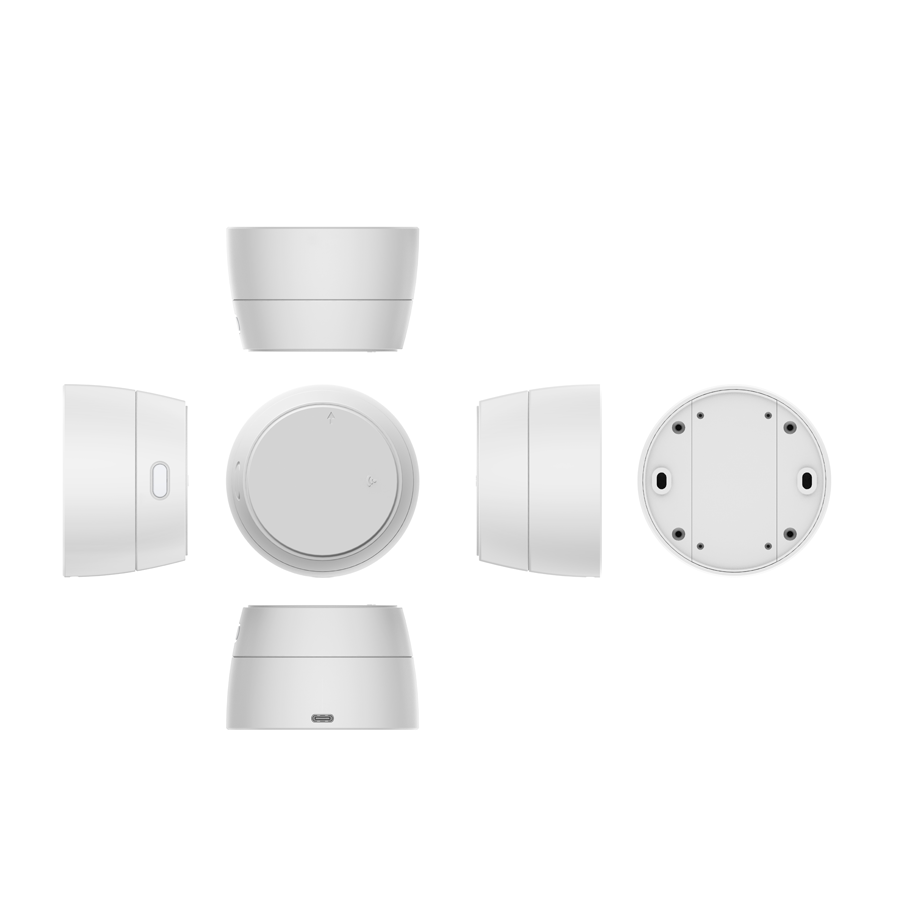

Product Size (nm)
80×80×51.8
Install
- The radar is installed at an incline of 45°.
- Ensure that the radar monitoring area is above the head of the bed.
- It is recommended to be 1m higher than the bed surface. When installed on both sides of the bed, please understand the wall thickness.
Help Center
Have a query? Please check this question and answers
Adopts 60GHz millimeter wave radar + AI algorithm dual verification mechanism:
- When an abnormal posture is detected for the first time, the built-in speaker voice asks the user “Did you fall?”, and the APP alarm is triggered only after the user confirms “Yes”;
- If the user does not respond or remains still for a long time (such as coma), the sensor will automatically push alarms to the family APP continuously and send text messages to emergency contacts simultaneously.
Based on the Doppler effect of 60GHz millimeter-wave radar, it detects human micro-movements (such as chest rise and fall during breathing, body movements caused by heartbeat) by transmitting and receiving radar waves.
There is no need to wear equipment or contact the skin. The monitoring distance can reach 2.5 meters (sleep state) and 1.5 meters (breathing/heartbeat accuracy monitoring).
Yes. Through dynamic/static presence detection algorithms, the difference between characteristic human movements (such as walking and waving) and pet activities can be accurately identified to avoid false alarms caused by pet activities.
The detection accuracy reaches the breathing level (it can sense human breathing in a static state).
By monitoring data such as the duration of falling asleep, total sleep time, number of times getting out of bed, breathing rate, heart rate variability (HRV), and combining it with AI algorithms to divide the stages of wakefulness, light sleep, and deep sleep, a sleep score report is generated to intuitively display key indicators such as the proportion of deep sleep and sleep efficiency.
No.
The transmission power of HOMERDA products is lower than the international safety standards (such as the FCC’s 60GHz radar maximum power density ≤1mW/cm²), and the radiation intensity is much lower than a mobile phone call.
It is non-ionizing radiation and is harmless to the human body if used for a long time.
Data is transmitted to the cloud via the AES-128 encryption protocol and stored on Amazon cloud servers/and other compliant servers;
All devices have no video cameras and only transmit abstract vital sign data (such as respiratory rate, fall alarms), without involving images or privacy images, eliminating the risk of leakage from the source.
Yes. Users can add multiple family members’ accounts through the APP and authorize remote viewing of real-time health data, sleep reports and alarm records, which is suitable for remote monitoring of children or multi-role collaboration in nursing homes.
